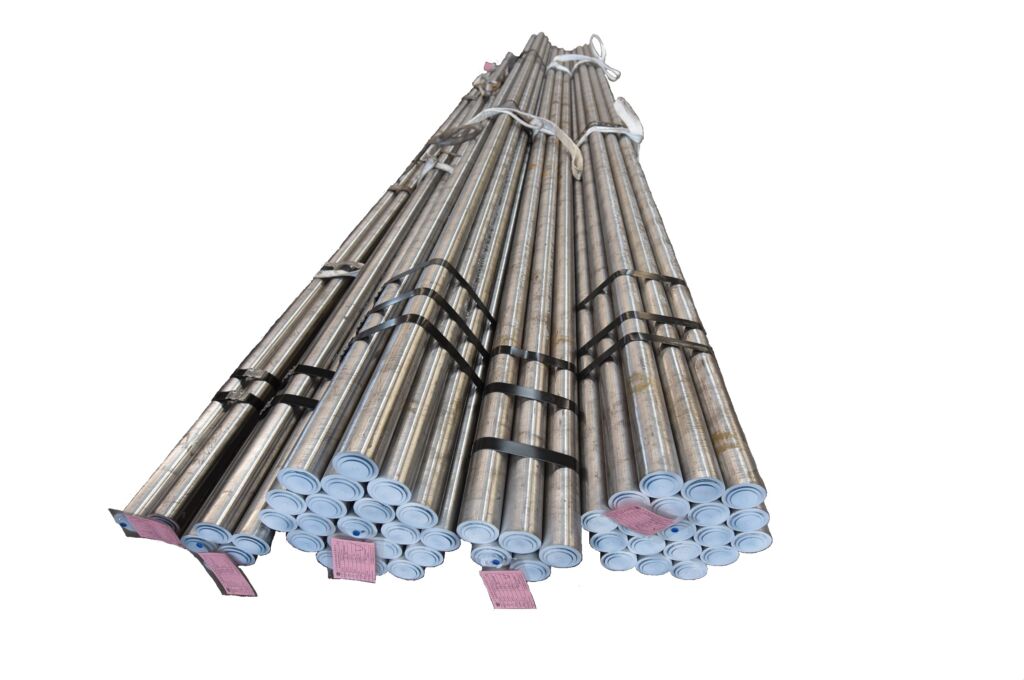

Categories: ALLOY STEEL PIPE/TUBE
| Standard | : | EN 10216-2 |
| Equivalent Standards | : | DIN 17175, ASTM A213, ASME SA213, ASTM A335, ASTM A / SA 209 |
| Material | : | 16Mo3, 1.5415 |
| Equivalent Materials | : | 15Mo3 |
| Length | : | 5800mm; 6000mm; 10000mm; 11500mm; 11800mm; and so on. |
| Max length | : | 25000mm |
|
C, % |
Si, % |
Mn, % |
P, % |
S, % |
Mo, % |
|
0.12-0.20 |
0.35 max |
0.40-0.90 |
0.025 max |
0.020 max |
0.25-0.35 |
|
Tensile Strength , MPa |
Yield Strength, MPa |
Elongation, % |
|
450-600 |
280 min |
22 min |
|
Hot rolled |
Outside Diameter, mm |
Tolerance |
|
OD≤219.1 |
±1% or ±0.5mm |
|
|
OD>219.1 |
±1% or ±0.5mm |
|
|
Cold Drawn |
Outside Diameter, mm |
Tolerance |
|
OD≤114 |
±0.5% or ±0.3mm |
|
Hot rolled |
Outside Diameter, mm |
WT/OD |
Tolerance |
|
OD≤219.1 |
WT/OD≤2.5% |
±12.5% or ±0.4mm |
|
|
2.5%＜WT/OD≤5% |
|||
|
5%＜WT/OD≤10% |
|||
|
WT/OD>10% |
|||
|
OD>219.1 |
WT/OD≤2.5% |
±20% |
|
|
2.5%＜WT/OD≤5% |
±15% |
||
|
5%＜WT/OD≤10% |
±12.5% |
||
|
WT/OD>10% |
±10% |
||
|
Cold Drawn |
Outside Diameter, mm |
– |
Tolerance |
|
OD≤114 |
– |
±10% or ±0.2mm |
